Beskrivning

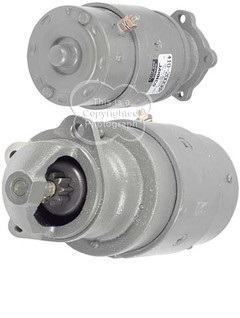

ELECTRIC STARTER TYPE Direct Drive (DD)
GEAR OD 1″
GEAR OD 25.400mm
NUMBER OF TEETH 9
ROTATION DIRECTION Counter Clockwise
VOLT 12
Chris Craft 427-F O 8cyl 427ci 7.0L G 1965-1974
Chris Craft 427-F 7000cc, 7L/427CI 8-Cyl GM 1965-1974
Chris Craft 427-O 7000cc, 7L/427CI 8-Cyl GM 1965-1974
Harman Various Models 1975-1978
Some Older Ford Commanders, and Harman Marine used optional “TOP MOUNT” starters located above the transmission. These are New Marine Starters for NORMAL ROTATION ENGINES, however, when the starter is rotated from the std. “alongside” the oil pan, to above the transmission and now pointing forward the starter must be a “CCW” or reverse rotation starter for a normal rotation engine.
NOTE: This is a (3) bolt mount flange with (2) 3/8″ bolts and (1) 5/16″ bolt, starter is a CCW rotation
THIS STARTER WILL NOT WORK ON OLDER REVERSE ROTATING ENGINES FOUND ON CORRECT CRAFT BOATS
All American Skier boats with top mount Commander Fords will use this starter
46-2412
46-3575
46-729
462412
463575
46729
5195
MDU7035
MDY6140
MS-5013
